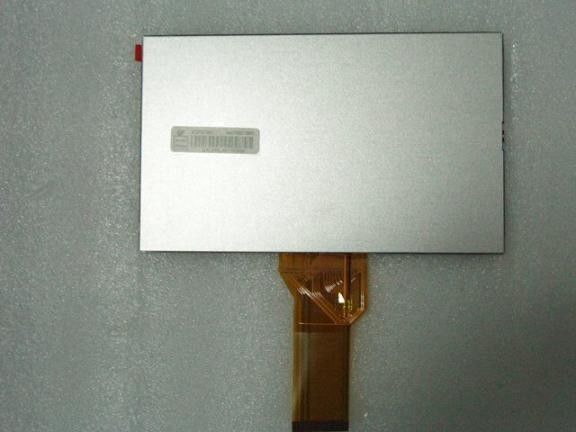

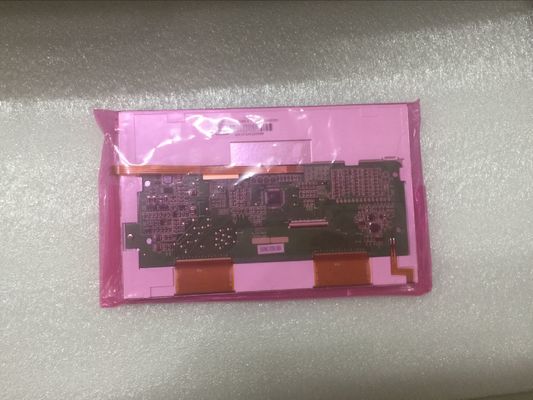

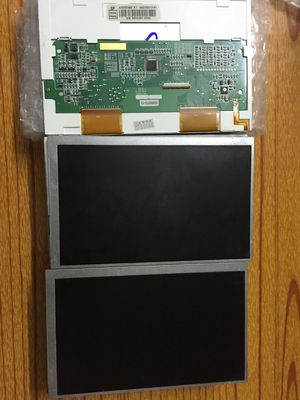

제품 상세 정보:
|
| 모델 번호: | TCG070WVLQEPNN-AN20 | 브랜드: | Kyocera |
|---|---|---|---|
| 사이즈: | 7inch | 결의안: | 800×480RGB |
| 밝기: | 350 cd/m2 (Typ.) | 시그널 타입: | LVDS (1개의 ch의 6/8 조금), 30대의 핀 커넥터 |
| 백라이트: | WLED, LED 운전사와 더불어 100K 시간, | 맥스. 평가: | 저장 임시 직원.: -30 ~ 80의 °C 운영하는 임시 직원.: -20 ~ 70 °C |
| 하이 라이트: | WLED 산업 TFT 전시,단단한 코팅 산업 TFT 전시,단색 산업 TFT 전시 |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG070WVLQEPNN-AN20 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 154.4×93.4 mm | 165×104.4 mm | 8.6±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 205g | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | AWV, Normally Black, Transmissive | 650:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 18/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6685K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Power Consumption : | 3.48W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 200/260mA (Typ./Max.) | 3.3V (Typ.) | 0.66W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | MDF76GW-30S-1H(55) | 1 pcs | 1.0 mm | 30 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 100K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 235/400mA (Typ./Max.) | 12.0±1.2V | 2.82W (Typ.) | ||||
