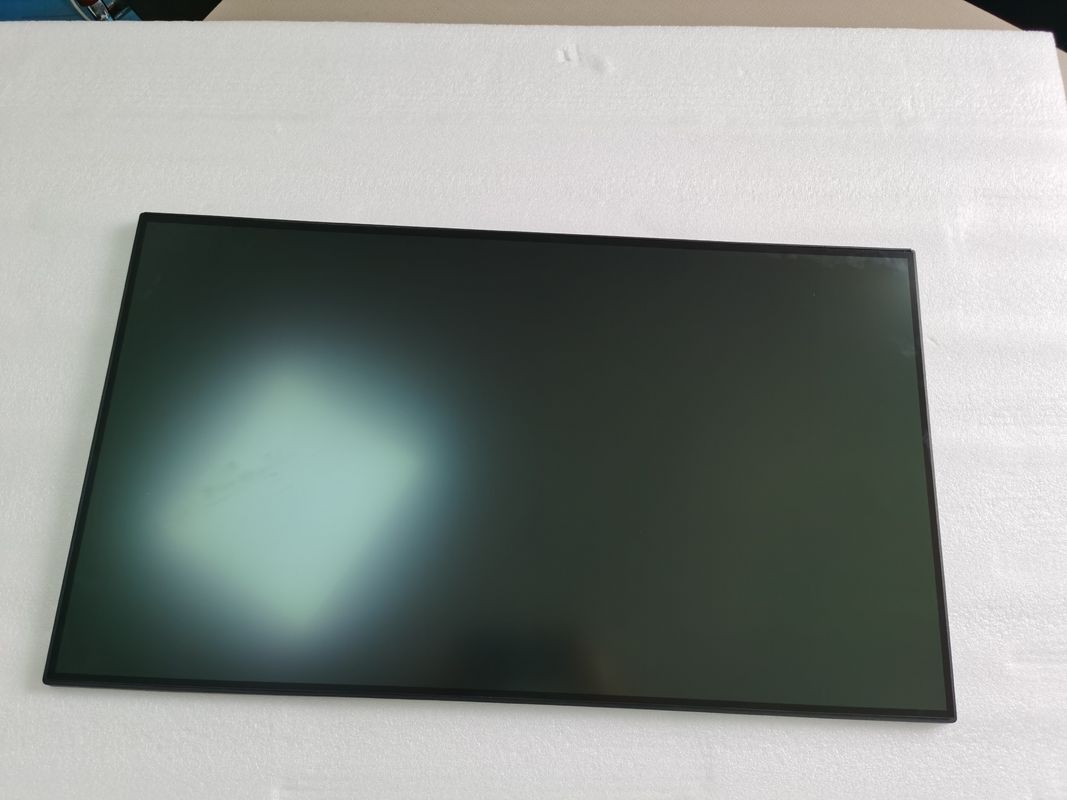

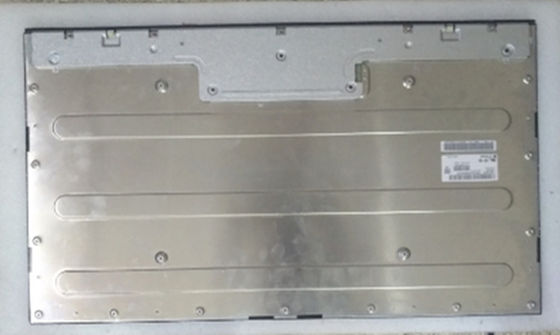

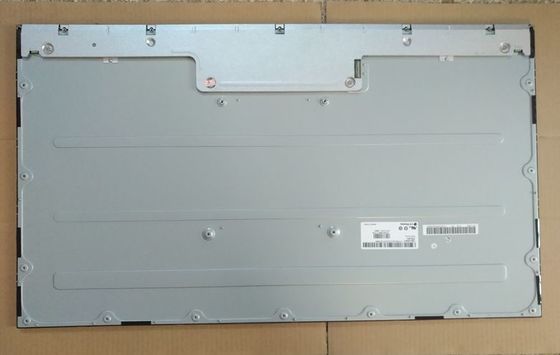

제품 상세 정보:
|
| 모델 번호: | LM315WR2-SSB1 | 브랜드: | LG 디스플레이 |
|---|---|---|---|
| 사이즈: | 32.0INCH | 밝기: | 450cd/m2 |
| 램프 유형: | WLED | 결의안: | 3840(RGB)×2160, UHD, 139PPI |
| 보이는 ANGLEG: | 89/89/89/89 (Typ.) (CR≥10) | 온도 범위: | 작용 온도: 0 ~ 50 °C; 저장 온도: -20 ~ 60 °C |
| 하이 라이트: | 고 휘도 LCD 스크린 450 cd/m2,32.0 "고 휘도 Lcd Screen,3840x2160 Lcd 비디오 패널 |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM315WR2-SSB1 | a-Si TFT-LCD , LCM | LM315WR2 (SS)(B1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.), HDR600 | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 96% | 100% | 87% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 98% | 72% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 32.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.18159×0.18159 [139PPI] | 0.06053×0.18159 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 697.31(H) × 392.23(V) | - | 713.2(H) × 411.8(V) | 11/15.7 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 3-side borderless | |
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.55/3.73Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8±1V | 85/90mA (Typ./Max.) | 36.7/38W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 12507HS-H10G | 1.25 mm | 10 pins | 2 pcs | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 0.85/1.06A (Typ./Max.) | 8.5/10.6W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-050A | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
