제품 상세 정보:
|
| 모델 번호: | LM215WFA-SSA3 | 브랜드: | LG 디스플레이 |
|---|---|---|---|
| 사이즈: | 21.5 인치 | 밝기: | 250cd/m2 |
| 램프 유형: | WLED | 결의안: | 1920년 [고정 헤드 디스크] 102PPI |
| 보이는 ANGLEG: | 89/89/89/89 (Typ.) (CR≥10) | 온도 범위: | 작용 온도: 0 ~ 50 °C; 저장 온도: -20 ~ 60 °C |
| 하이 라이트: | 21.5" TFT LCD Display,102PPI TFT LCD Display,250cd/m2 High Brightness TFT LCD |
||

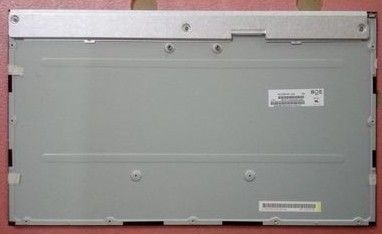

| Basic Information : | Brand | Model | LM215WFA-SSA3 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 21.5" | Alias | LM215WFA (SS)(A3) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.08265×0.24795 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24795×0.24795 (H×V) [102PPI] | |
| Mechanical Size : | Active Area(mm) | 476.064(H) × 267.786(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 484.5(H) × 284.4(V) | Depth(mm) | 8.49/12.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | 10 points | Touch Panel | In-Cell Touch |
| TP Controller | With touch controller | Touch Signal | USB | |
| Mounting : | Rear mounting holes (13-M3) | |||
| Other Spec : | Weight | 1.59/1.67Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 555/638mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.78/3.19W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30B-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 13S4P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 38.1±2.6V | Current Supply | 65mA (Typ.) | ||
| Consumption | 9.9W (Typ.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||

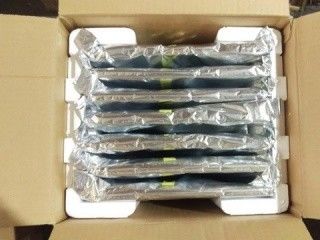

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 9 pcs / box | - | 553×315×360 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
