제품 상세 정보:
|

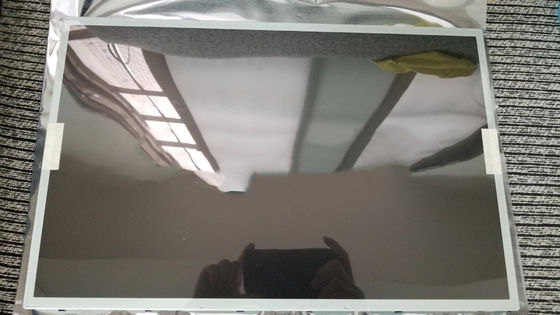

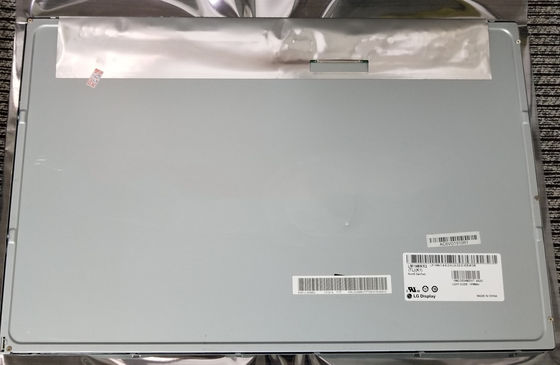

| 모델 번호: | LD550EUN-UHA1 | 브랜드: | LG 디스플레이 |
|---|---|---|---|
| 사이즈: | 55 인치 | 밝기: | 700 cd/m2 |
| 램프 유형: | WLED | 결의안: | 1920년 (고정 헤드 디스크) 40PPI |
| 보이는 ANGLEG: | 89/89/89/89 (Typ.) (CR≥10) | 온도 범위: | 작용 온도: 0 ~ 50 °C; 저장 온도: -20 ~ 60 °C |
| 하이 라이트: | 700 cd/m2 케케묵은 Tft Screen,40PPI 스퀘어 Tft Screen,55in RGB Tft 디스플레이 |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LD550EUN-UHA1 | a-Si TFT-LCD , LCM | LD550EUN (UH)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 55 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.210×0.630 mm | 0.630×0.630 mm [40PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1209.6×680.4 mm | 1215.6×686.4 mm | 1227.4×698.2 mm | 19.0/32.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Videowall Seam |
| Flat Rectangle | 16:9 (W : H) | Landscape / Portrait | 17.8 mm (Active to Active) | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 16.5/17.0Kgs (Typ./Max.) | Antiglare (Haze 10%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9972K | 16.7M/1.07B (8-bit / 8-bit + Dithering) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 98% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.54 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 755/982mA (Typ./Max.) | 12.0V (Typ.) | 9.1/11.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8/10-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 60K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 20022WR-H14B2 | 1 pcs | 2.0 mm | 14 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 4.4/4.8A (Typ./Max.) | 24.0±2.4V | 104.7/115.3W (Typ./Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 18 pcs / box | - | 1440×1140×950 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
