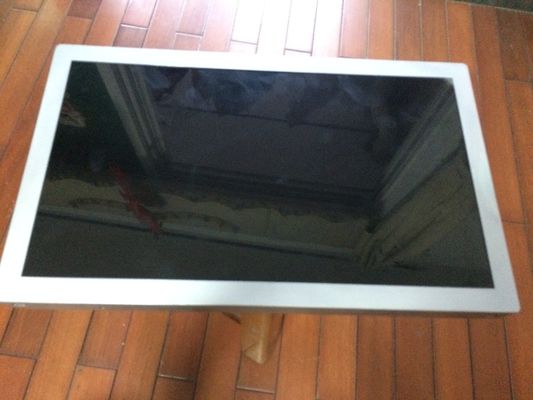

제품 상세 정보:
|
| 모델 번호: | LC170WXN-SAA1 | 브랜드: | LG.필립스 LCD |
|---|---|---|---|
| 사이즈: | 17.0 " 인치 | 밝기: | 350 cd/m2 |
| 램프 유형: | WLED | 결의안: | 1366년 [WXGA] 93PPI |
| 보이는 ANGLEG: | 89/89/89/89 (Typ.) (CR≥10) | 온도 범위: | 작용 온도: 0 ~ 50 °C; 저장 온도: -20 ~ 60 °C |
| 하이 라이트: | 1366x768 RGB Tft 디스플레이,350 cd/m2 RGB Tft 디스플레이,17.0 " 스퀘어 Tft 디스플레이 |
||

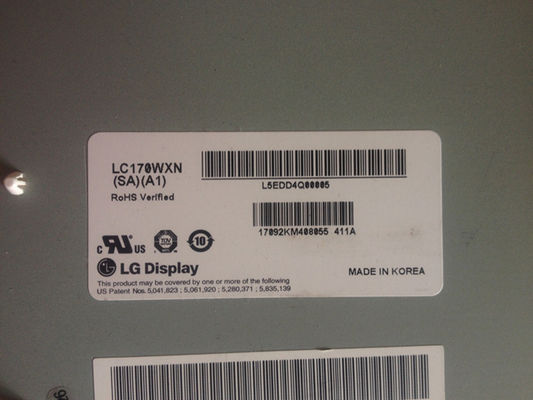

| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LC170WXN-SAA1 | a-Si TFT-LCD , LCM | LC170WXN (SAA1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 17.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.091×0.273 mm | 0.273×0.273 mm [93PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 372.918×209.664 mm | 377.0×213.8 mm | 413×252 mm | 43.6 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.10/2.21Kgs (Typ./Max.) | Antiglare (Haze 13%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 8/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 10785K | 16.7M (8-bit) | X:0.272; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 96% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.30 (Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 205/250mA (Typ./Max.) | 12.0V (Typ.) | 2.5/3.0W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-X30SSL-HF | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-020D | |

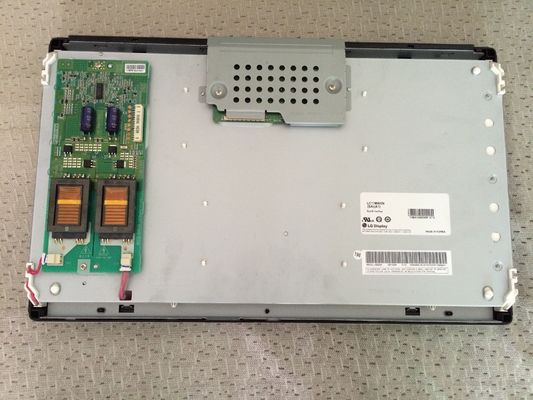

| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| EEFL | Direct light type | - | 8 pcs | 50K(Min.) | - | |
| Interface Features : | Position | Type | EEFL Driver | |||
| - | Connector | With Inverter | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | S14B-PH-SM3-TB | 1 pcs | 2.0 mm | 14 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.40/1.60A (Typ./Max.) | 24.0V (Typ.) | 33.6/38.4W (Typ./Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 7 pcs / box | - | 375×320×484 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
