제품 상세 정보:
|
| 모델 번호: | LB270WRM-SVA1 | 브랜드: | LG 디스플라리 |
|---|---|---|---|
| 사이즈: | 27.0INCH | 밝기: | 1000cd/m2 |
| 램프 유형: | WLED | 결의안: | 3840(RGB)×2160 [UHD] 163PPI |
| 보이는 ANGLEG: | 89/89/89/89 (Typ.) (CR≥10) | 온도 범위: | 작용 온도: 0 ~ 50 °C; 저장 온도: -20 ~ 60 °C |
| 하이 라이트: | 27.0 " Lcd 비디오 모듈,1000년 cd/M2 Lcd 비디오 모듈,163PPI Lcd 화면 패널 |
||

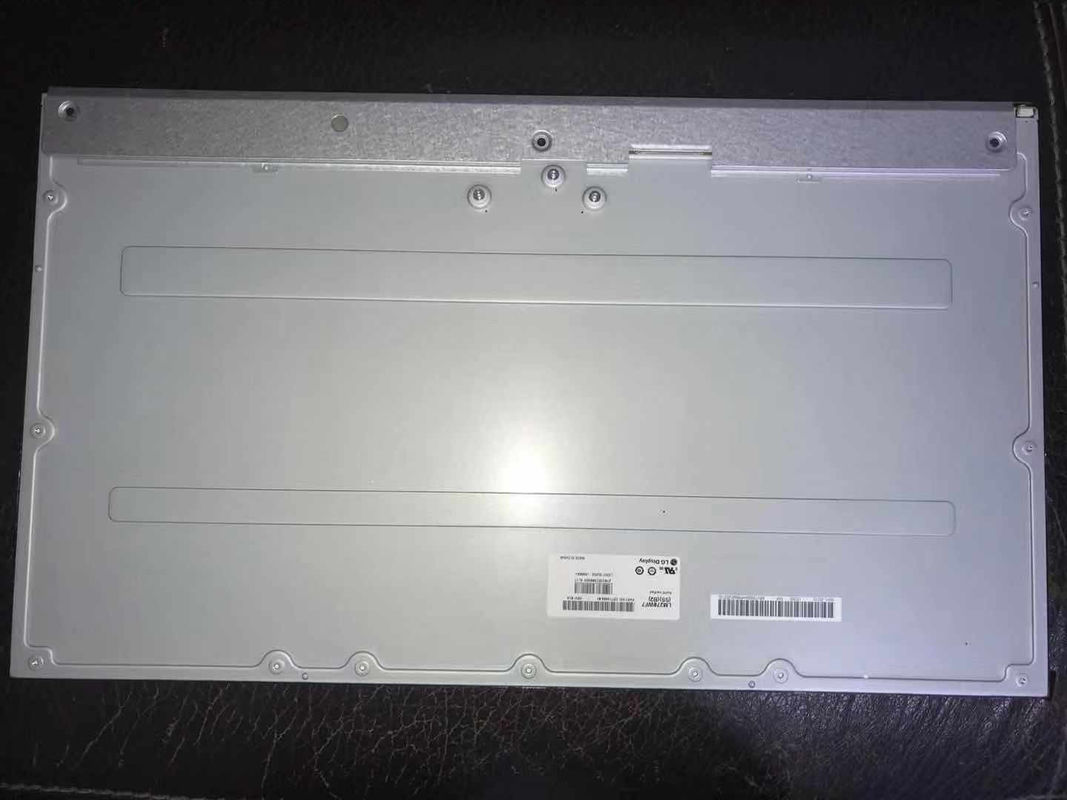

| Basic Info : | Panel Brand | Panel Model | LB270WRM-SVA1 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application |
|
|
| Panel Type | LTPS TFT-LCD , LCM | Model Alias | LB270WRM (SV)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.0518×0.1554 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1554×0.1554 mm (H×V) [163PPI] | |
| Mechanical Size : | Display Area | 596.74×335.66 mm (H×V) | Bezel Area | 601.1×340.0 mm (H×V) |
| Outline Dim. | 629.1×369 mm (H×V) | Outline Depth | 14.0/21.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Rear mounting holes (11-M3) | |||
| Other Features : | Weight | - | Surface | Hard coating |
| Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 82% | sRGB | 100% coverage |
| Adobe RGB | 81% coverage | DCI-P3 | 85% coverage | |
| Rec.2020 | 61% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 44.8V (Typ.) | Current Input | 85mA (Typ.) | ||
| Consumption | 60.9W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WS-H10D | 1.0 mm | 10 pins | 2 pcs | BLE-10PINS-CCCCAACCCC | |
| Signal Systerm : | V-by-One 8 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 1.1/1.38A (Typ./Max.) | ||
| Consumption | 13.2/16.56W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05S-51S-H38 | 0.5 mm | 51 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 814×543×509 mm |
