제품 상세 정보:
|
| 패널 모델: | LM12S49 | 밝기: | 185 cd/m2 |
|---|---|---|---|
| 패널 사이즈: | 12.1inch | 결의안: | 800 (RGB) ×600, SVGA, 82PPI |
| 신호 인터페이스: | CMOS / TTL (1 ch, 8비트), 41 핀 연결기 | 픽셀 포맷: | RGB 세로줄 |
| 환경: | 운영하는 임시 직원.: 0 ~ 50 °C; 저장 임시 직원.: -25 ~ 60 °C | 램프 유형: | 드라이버 없이, 40K 시간인 2 PC CCFL |
| 하이 라이트: | ＳＶＧＡ 감도가 좋은 TFT LCD 스크린,XGA 산업적 엘시디 판넬,LVDS TFT LCD 디스플레이 |
||
| Basic Information : | Brightness | 185 cd/m² (Typ.) | Contrast Ratio | 40:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 30/30/15/25 (Typ.)(CR≥5) | Optical Mode | STN, Normally Black, Transmissive | |
| Viewing Direction | - | Response Time | 220/80 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.280; Wy:0.330 | Color Numbers | Color |
| Color Temperature | 8484K | White Uniformity | - |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 250.6×189.1 mm (H×V) |
| Outline Dim. | 275×202.5 mm (H×V) | Outline Depth | 8.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Other Features : | Weight | 550g | Surface | - |
| Signal Systerm : | CMOS/TTL (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VDD) | Current Input | 160/170mA (Typ.)(3.3V/5.0V)(IDD) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9B-41P-1V | 1.0 mm | 41 pins | 1 pcs | ||
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 40K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 590V (Typ.) | Current Input | 5.5/6.0mA (Typ./Max.) | ||
| Frequency | 30/70KHz (Min./Max.) | Kick-off Voltage | 1130/1280V (Max.)(Ta=+25/0℃) | |||
| Consumption | 6.5W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |

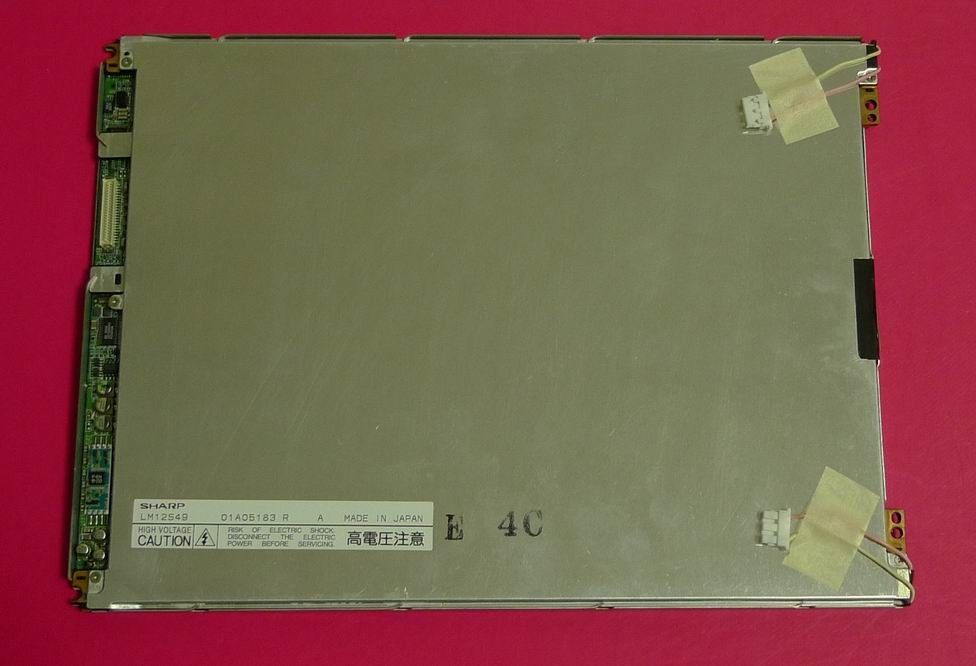

LM12S49 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 275(W)×202.5(H)×8.5(D) mm, viewing area size of 250.6(W)×189.1(H) mm, net weight of 550g. As a STN, Normally Black, Transmissive LCM product, LM12S49 can provides 185 cd/m² display brightness 40:1 transimissive contrast ratio, 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 40K hours, external backlight driver is additionally needed.
