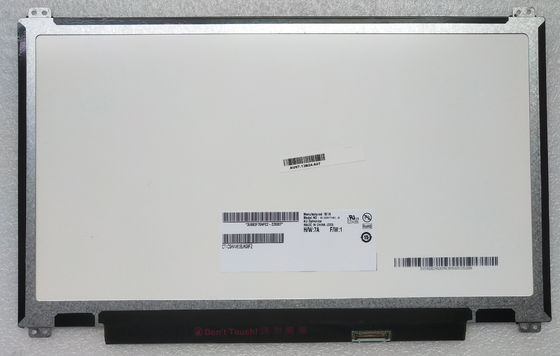

제품 상세 정보:
|
| 모델 번호: | N133BGE-EA2 | 브랜드: | INNOLUX |
|---|---|---|---|
| 사이즈: | 13.3 인치 | 밝기: | 300cd/m2 |
| 램프 유형: | WLED | 결의안: | 1366년 [WXGA] 118PPI |
| 보이는 ANGLEG: | 45/45/20/45 (Typ.)(CR≥10) | 온도 범위: | 페라팅 온도 : 0 ~ 50 'Ｃ ; 저장 온도 : -20 ~ 60 'Ｃ |
| 하이 라이트: | NTSC Lcd 화면 패널,무광택 NEC TFT 디스플레이,전기 용량 TFT 터치 패널 |
||
| Basic Info : | Panel Brand | Panel Model | N133BGE-EA2 | |
|---|---|---|---|---|
| Diagonal Size | 13.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.0716×0.2148 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2148×0.2148 mm (H×V) [118PPI] | |
| Mechanical Size : | Display Area | 293.42×164.97 mm (H×V) | Bezel Area | - |
| Outline Dim. | - | Outline Depth | 2.67/2.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | - | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/8 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 1.27W (Max.) | |||||
| Signal Systerm : | eDP (1 Lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 200/220mA (Typ./Max.) | ||
| Consumption | 0.71W (Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1 pcs | ||
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 1.98W (Max.) |
