제품 상세 정보:
|

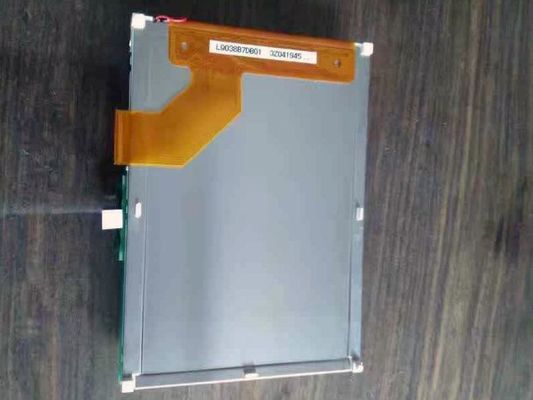

| 브랜드: | 전문가 | 모델: | LQ038B7DB01 |
|---|---|---|---|
| 픽셀 포맷: | 320(RGB)×480 [HVGA] 153PPI | 대각선 사이즈: | 3.8 인치 |
| 조명 공급원: | 어떤 선하증권 | 인터페이스 타입: | 대비 RGB (1 ch, 6개 비트), 39 핀 FPC |
| 윤곽: | RGB 세로줄 | 환경: | 작동 온도 : -10 ~ 60 'Ｃ ; 저장 온도 : -30 ~ 75 'Ｃ |
| 하이 라이트: | WLED 높은 광도 LCD 디스플레이,CCFL TFT LCD 스크린,ＳＶＧＡ 날카로운 TFT LCD 디스플레이 |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ038B7DB01 |
|---|---|---|---|---|
| Diagonal Size | 3.8" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -30 ~ 75 °C |
| Pixel Features : | Pixel Format | 320(RGB)×480 [HVGA] | Dot Pitch | 0.055×0.165 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.165×0.165 mm (H×V) [153PPI] | |
| Mechanical Size : | Display Area | 52.8×79.2 mm (H×V) | Bezel Area | - |
| Outline Dim. | 64.9×92.3 mm (H×V) | Outline Depth | 2.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 2:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 25.0±5.0g | Surface | Clear, Hard coating |
| Basic Information : | Brightness | - | Contrast Ratio | 60:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Optical Mode | TN, Normally White, Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 20/35 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6551K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 6/9% (Min./Typ.) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
