제품 상세 정보:
|

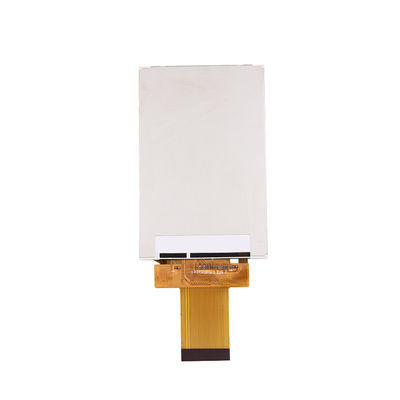

| 모델 번호: | LB035Q02-TD02 | 브랜드: | LG.필립스 LCD |
|---|---|---|---|
| 사이즈: | 3.5 인치 | 밝기: | 370CD/M2 |
| 램프 유형: | WLED | 결의안: | 320 (RGB) ×240 (QVGA) 115PPI |
| 보이는 ANGLEG: | 65/65/50/60 (Typ.) (CR≥10) | 온도 범위: | 저장 임시 직원.: -30 ~ 80의 °C 운영하는 임시 직원.: -20 ~ 70 °C; 수평 진동: 2.0G (19.6 m/s ²) |
| 하이 라이트: | 115PPI 산업적 Lcd Panel,370cd/m2 산업적 Lcd Panel,ISO9001 스퀘어 엘시디 판넬 |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB035Q02-TD02 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| - | -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.073×0.219 mm | 0.219×0.219 mm [115PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 70.08×52.56 mm | 72.48×55.26 mm | 76.9×63.9 mm | 3.15±0.15 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 35.0/40.0g (Typ./Max.) | Clear, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 370 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/50/60 (Typ.)(CR≥10) | 6 o'clock | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 16.7M (6-bit + Hi-FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.20/1.40 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/13/-9V (Typ.)(VCI/VGH/VGL) | 90/100mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Digital RGB (8/18/24-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 6S1P | - | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 135 pcs / box | - | 475×348×210 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
